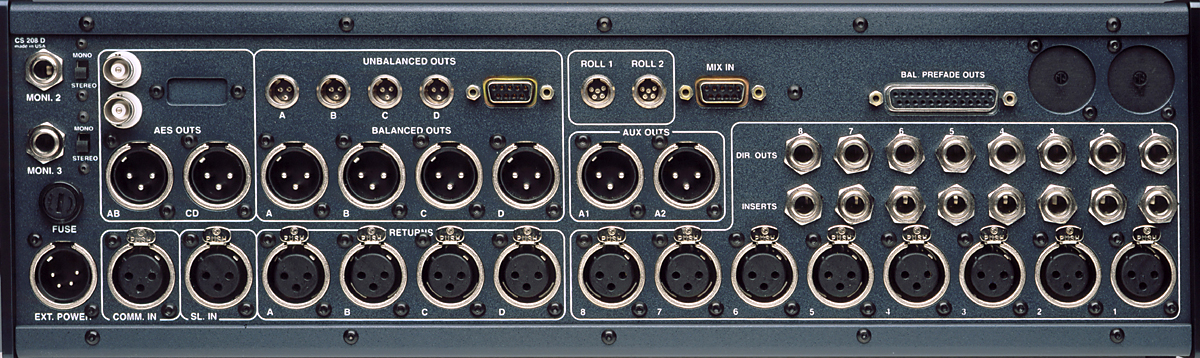

CS 208 v2 REAR PANEL |
|
|
Click image to view larger in a new browser window.
|
|
| Left
to Right |
|
| MONI
2, MONI 3: |
Monitor
2 & 3 outputs - for stereo or mono headphones (or mono wireless communications). |
| FUSE:
|
2.5 A (5 x 20 mm). |
| EXT
POWER: |
Pin
1 = negative DC, Pin 3 = Battery charge (positive), Pin 4 = Positive DC (see specifications). |
| AES
OUTS (Option): |
Digital
outputs for A,B,C,D busses. Clock reference in (upper BNC). Clock reference out (lower BNC). |
| UNBALANCED
OUTS (TQG): |
A,B,C,D Pin 1 = ground, Pin 2 = signal. |
| UNBALANCED
OUTS (D9):: |
A,B,C,D. |
| BALANCED
OUTS (XLR): |
A,B,C,D, Aux 1, Aux 2. |
| ROLL
1 & 2: |
Remote control for various recorders. |
| MIX
BUS IN: |
A,B,C,D (current input). |
| COMM
IN: |
Communications input to Monitor 1 (balanced). |
| SL
IN: |
External slate mic input. |
| RETURNS: |
A,B,C,D, balanced inputs. |
| BAL
PREFADE OUTS (Option): |
Pre or post fader channel outputs (+4dBU balanced) for multitrack recording (standard wiring). |
| DIR
OUTS: |
Channel direct outs, post fader (unbalanced). |
| INSERTS: | Can
be changed to direct out, prefade (unbalanced). See Board A layout. |
| XLR Inputs: | Transformer balanced (mic or line level). |
| 2 spare holes: | Stereo input channel option. |
|
