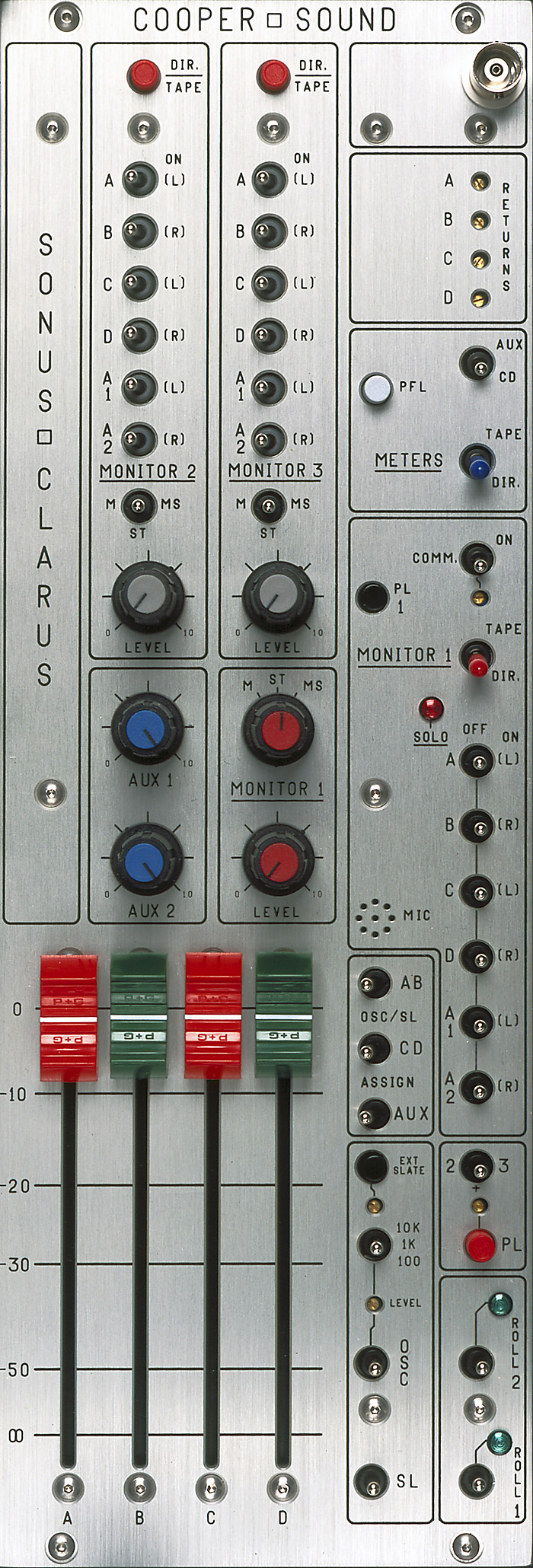

CS 208 v2 OUTPUT MODULE |
|||
|
Click
image to view larger
in a new browser window. |
|||
|
|
Monitor 2 & 3 | ||
| 1. DIR/TAPE: | Selects direct or tape return signals (for busses ABC & D). | ||
| 2-7. A,B,C,D,A1,A2: | Assigns
busses to Monitor 2/3 outputs. (L) = left, (R) = right when using stereo headphones. |
||
| 8. M/ST/MS: | M
= mono, ST = stereo, MS = mid-side. Only applicable if stereo headphones are used. (See rear panel.) |
||
|
9. LEVEL: |
Gain adjustment | ||
|
Aux 1, Aux 2 |
|||
| 10,11. | Aux 1 & 2 master level controls. | ||
| 12. BNC: | 12 volts available to power a 'Littlite' (R) (See meter panel.) | ||
| 13. RETURNS: | Trim pots (multiturn) to adjust return (tape) level to Monitors 1, 2 & 3 and the meters. | ||
|
Meter Section |
|||
| 14. AUX/CD: | Meters 3, 4 = CD or Aux outputs (3 = C or A1, 4 = D or A2). | ||
| 15. PFL: | Meters
1, 2 can indicate PFL selected on the input channels. (Momentary switch) |
||
| 16.
TAPE/DIR: |
Tape/Direct.
Meters indicate the return signals. (1 = A, 2 = B, 3 = C, 4 = D). CD/Aux switch (14) overides the tape return. |
||
|
Monitor 1 Section |
|||
| 17. COMM: | Communications
return (talkback) to Monitor 1 only. (See appl. note for 2 returns.) The multiturn trimmer below this switch adjusts the level. |
||
| 18. PL 1: | Private
line assign to Monitor 1 (down = on). See master PL switch #28. |
||
| 19. TAPE/DIR: | Tape or Direct to Monitor 1 | ||
| 20. SOLO/OFF/ON | A,B,C,D,
A1,A2: Any combination of busses can be monitored. 'SOLO' disconnects the other busses to the Monitor 1 output - Solo normally mono�s the signal to the headphone out - there is an internal slide switch to defeat this. 'ON' - In stereo mode the busses are assigned to either (L) left or (R) right. |
||
|
21. M/ST/MS: (Monitor 1) |
M
= mono, ST = stereo, MS = mid-side Any combination selected by switch (20) can be monitored in mono, stereo or mid-side. |
||
| 22.
LEVEL: (Monitor 1) |
Gain control. | ||
| 23. MIC: |
Internal slate mic (See #24, 25, 27). |
||
|
Osc/SL section |
|||
| 24. AB/CD/AUX: | Assigns
the oscillator or slate to AB, CD or Aux busses - The aux. bus switch now has 3 positions - Left = off, Center = Aux 1 only, Right = Aux 1 & 2. |
||
| 25.
EXT SLATE: |
Down
= external slate mic input (on rear panel)
The trimmer below adjusts the slate mic level. |
||
|
Oscillator Section |
|||
| 26.10k/1k/100: LEVEL: OSC: |
Frequency
select for the internal oscillator. Adjusts oscillator level (multiturn). Internal oscillator - Up = on, Down = momentary on |
||
| 27. SL : | Slate
mic; Down = with LF (low frequency) tone Up = no LF tone. |
||
| 28. PL Section: | Master
private line to Monitors 1, 2 or 3 The level is adjusted by the multiturn trimmer above. |
||
|
2/+/3:
|
Assigns PL to Monitor 2, 2 & 3 or Monitor 3 only. | ||
| 29. ROLL 1,2: | Independent
remote control for many types of recorders. (See separate application note.) |
||
| 30. Master faders: | ABCD - Normally left at maximum for optimum headroom and signal to noise ratio. | ||
|
|
|||
